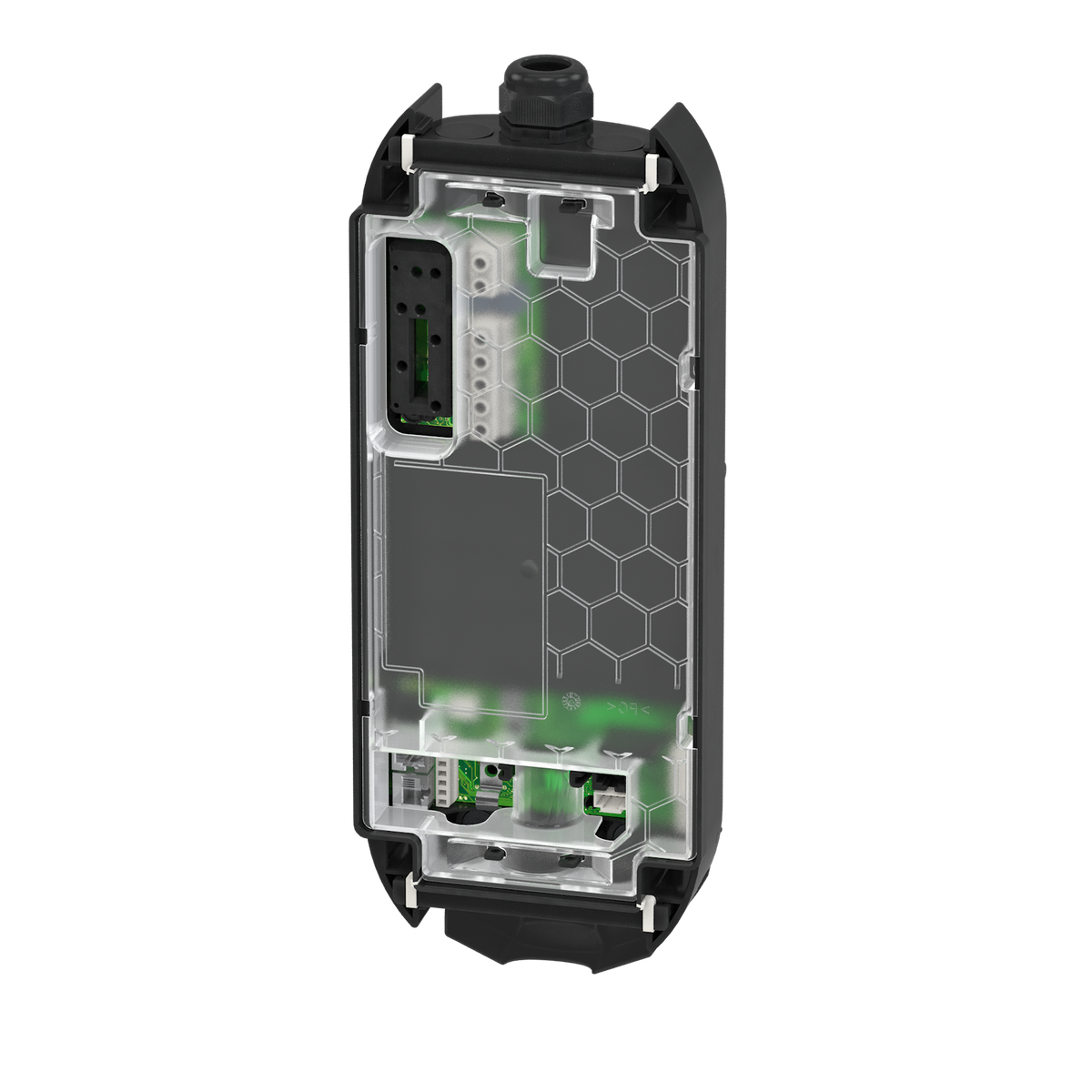

eBOX smart socket – Home

Smart wallbox for flexible charging at home or at work.
The eBOX smart socket – Home delivers up to 22 kW via a Type 2 socket and combines intelligent control, easy installation and German brand quality. The wallbox is always supplied with the latest firmware version and is therefore ready for immediate use – without additional updates.

With adjustable charging power from 3.7 to 22 kW, the wallbox adapts perfectly to virtually any installation. Thanks to OCPP 1.6J and Modbus TCP/IP, it can be integrated seamlessly into backends, energy-management systems or PV surplus charging. Combined with a smart meter such as Shelly, dynamic load management is possible – for efficient and safe charging.

The eBOX can optionally be equipped with a MID energy meter (eSmartmeter) – ideal for precise consumption-based billing in private applications and Charge@home.

The eBOX can be set up conveniently via Wi-Fi or Bluetooth. Apps such as Monta or eCarUp can be used to monitor and bill charging sessions. The large LED ring shows charging status at a glance, while integrated DC residual-current detection helps reduce installation costs.

With its robust IP54 enclosure and operating temperatures from –30 °C to +50 °C, the eBOX is suitable for indoor and outdoor use.

Important information on setting up the Compleo eBOX

Setup of the Compleo eBOX via the eConfig app is now only available to a limited extent. The app can currently be used particularly on older Android versions; reliable functionality is not guaranteed on newer devices.

Regardless of this, the Compleo eBOX can always be set up and configured reliably via a LAN connection and the browser-based WebConfig interface.

Scope of delivery:

• eBox smart
• eClick

• Mounting materials / drilling template / operating instructions

Further details are available in the datasheet: Link

A step-by-step installation guide is available here: https://youtu.be/eQ0kbS07iAk?si=z14CjwmG3nvyxIT4
