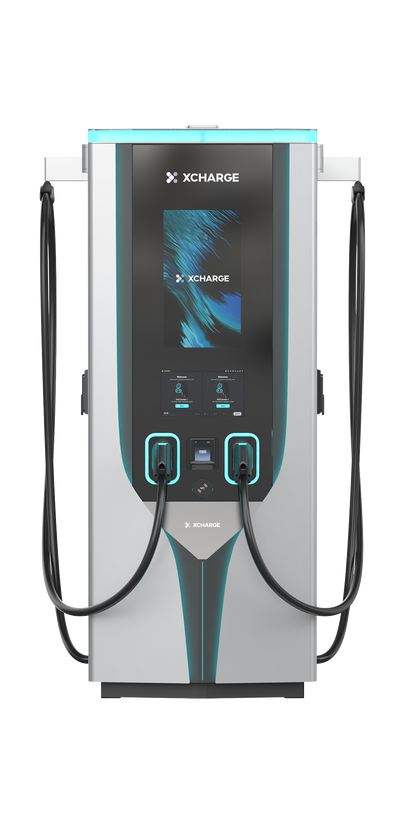

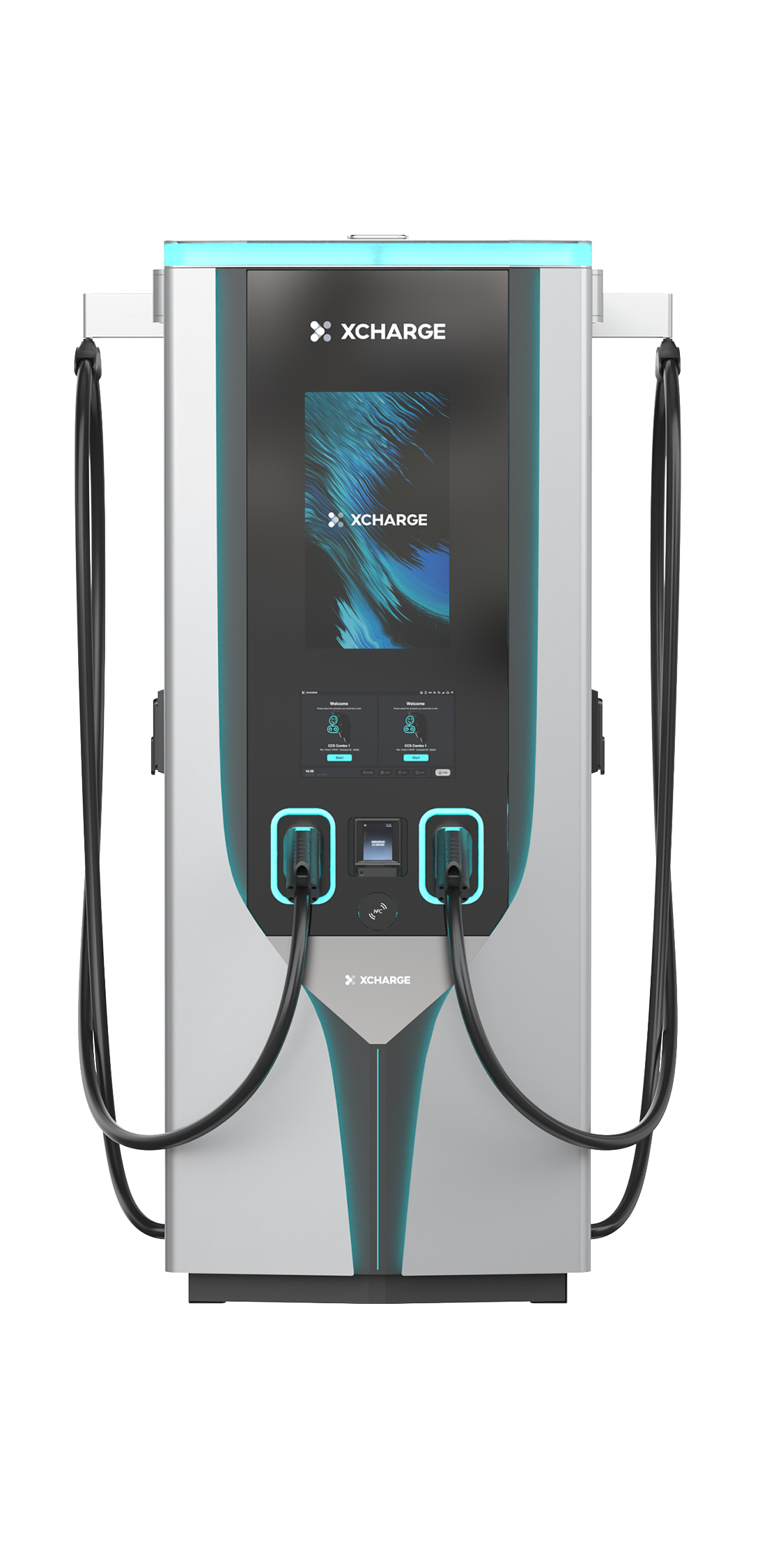

XCharge C7 400 kW with 2 x 5.5 m liquid-cooled CCS cables

XCharge C7 400 kW Ultra-Fast Charger – MID, 2 × CCS, 5.5 m liquid-cooled cables

High-performance DC fast charger for public charging infrastructure, charging hubs, fleets and commercial sites

The XCharge C7 Ultra-Fast Charger is a powerful DC fast-charging station for demanding charging-infrastructure projects. With up to 400 kW DC charging power, two CCS charging points and liquid-cooled charging cables, it is ideal for high-traffic locations, charging hubs, motorway sites, fleet applications, car dealerships, logistics facilities and public fast-charging infrastructure.

This configuration features 2 × CCS2, MID metering equipment and 5.5 m liquid-cooled charging cables. Its high output and broad 200–1000 V DC voltage range make the C7 suitable for modern EVs with 400 V and 800 V battery systems.

Important: Please contact us before ordering. For DC fast chargers in this power class, the grid connection, foundation, supply cable, protection equipment, backend, billing and country-specific requirements must be checked in advance.

Data sheet

Ideal for public and commercial fast-charging infrastructure

The XCharge C7 is designed for sites where high charging power, rapid vehicle throughput and professional operation are essential. Its modern enclosure, intuitive user interface and backend connectivity make it suitable for public, semi-public and commercial applications.

Typical applications:

• Charging hubs and fast-charging sites
• Motorway service areas and filling stations
• Retail and commercial locations
• Company fleets and logistics depots
• Car dealerships and workshops
• Car parks with high charging frequency
• Public DC charging infrastructure
• High-power fleet and depot charging

Benefits of the XCharge C7 400 kW

Up to 400 kW DC: The C7 provides up to 400 kW output, enabling very short charging times for compatible vehicles. Power is intelligently allocated between the available charging points.

Liquid-cooled CCS cables: The offered version uses liquid-cooled CCS2 charging cables, supporting currents up to 600 A peak and 500 A continuous.

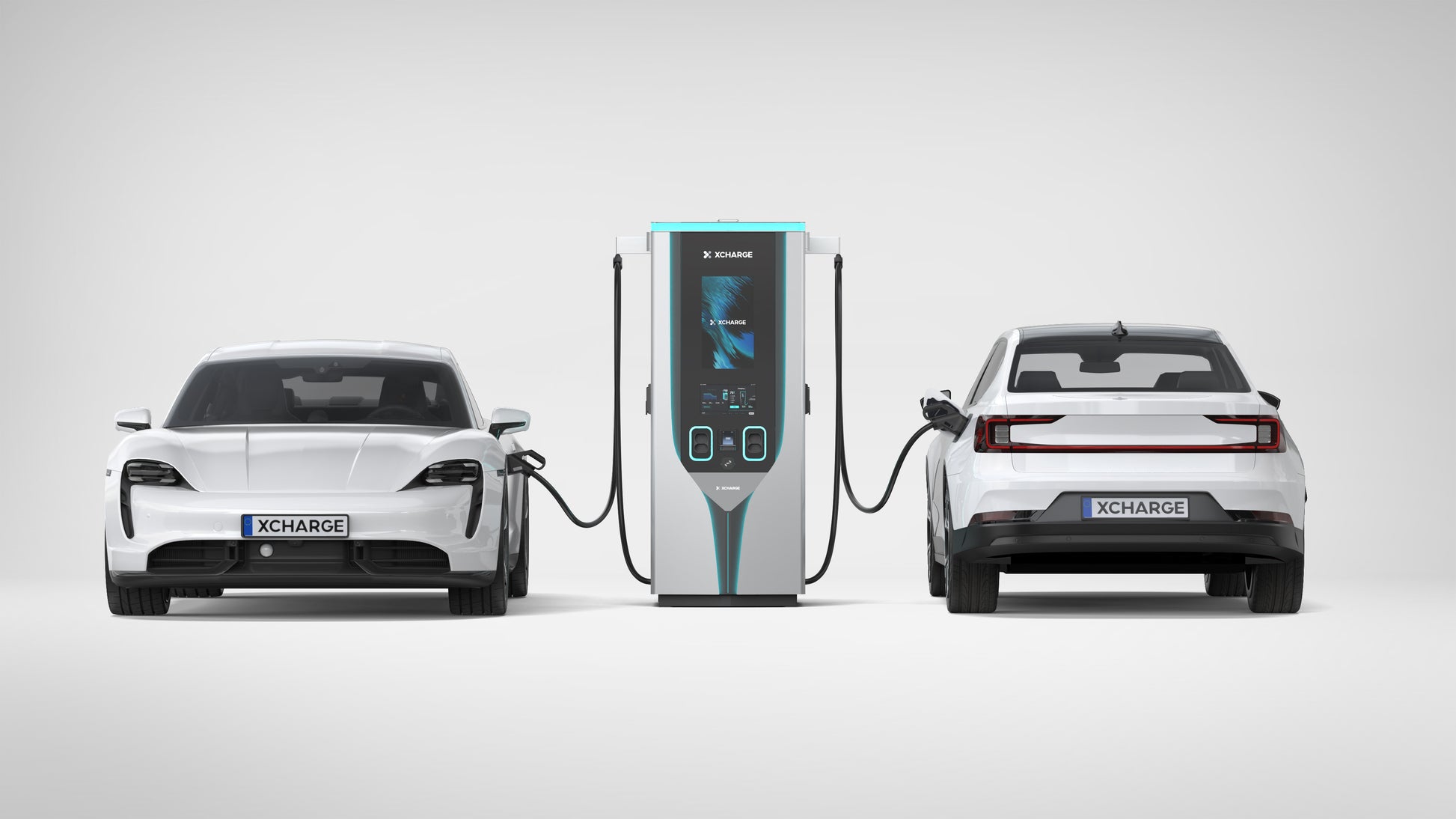

2 × CCS2 charging points: Two vehicles can be connected. Power allocation is managed dynamically according to vehicle demand, battery state and available total power.

5.5 m cable length: The long cables improve reach across different vehicle charge-port positions and give more flexibility in bay design.

MID metering: This version is equipped with appropriate metering equipment. For public billing and country-specific regulatory requirements, project-specific suitability must be checked before implementation.

Modern user interface: A 13.3-inch HMI touchscreen plus an additional 21.5-inch LCD display provide user guidance, status information and optional advertising content.

Backend and network connectivity: Supports OCPP 1.6J and OCPP 2.0.1, with connectivity via 4G/5G or Ethernet RJ45 for monitoring, remote service and backend billing.

Robust outdoor construction: IP54, IK10, weather-resistant coating and industrial enclosure materials support indoor and outdoor use.

Technical data
